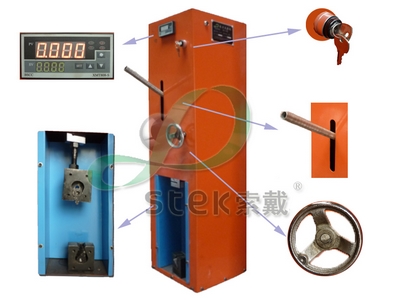

Introduction of Portable Intelligent Tension Test Machine

ST1000-2000 Intelligent Tension Test Machine is a new kind of portable tension test machine, fully designed by our own R&D. Our ST1000-2000 Series completely overcome the disadvantages of great volume, immense weight and high consumption of traditional tension test machine. Combined with the advantages of small size, light weight, precise sensing, free electric power, and flexible transferring, ST1000-2000 Series are soon widely used in all kinds of customers, which enable them to test the straps anywhere and anytime.

ST1000-2000 are equipped with heavy duty hydraulic pressure lifting jack, which requires you only to swing the handle gently so that you can enable the hydraulic pressure jack to pull the straps at the maximum tension of 2 tons. The instantaneous tension of the straps is precisely calculated by the transducer, which is connected with the hydraulic pressure lifting jack, and finally shown on the indicator.

Application

For testing tensile of different straps, like PET strap, PP strap and steel strap.

Advantage of Intelligent Tension Test Machine

1）Man Power Driven And No Need Electric Power

2）Precise Sensing And Intelligent Indication

3）Small Size And Flexible Portability

4）Easy Operation And No Maintenance

Main Parameters

picture	Model	Net Weight	Overall Size	Max Tensile Force	Unit	Error Range	Power Supply	Portability
	ST1000	35KG	30CM*30CM*100CM	0-1000KG	KG	±20KG	No	Yes
	ST2000	38KG	30CM*30CM*100CM	0-2000KG	KG	±20KG	No	Yes
